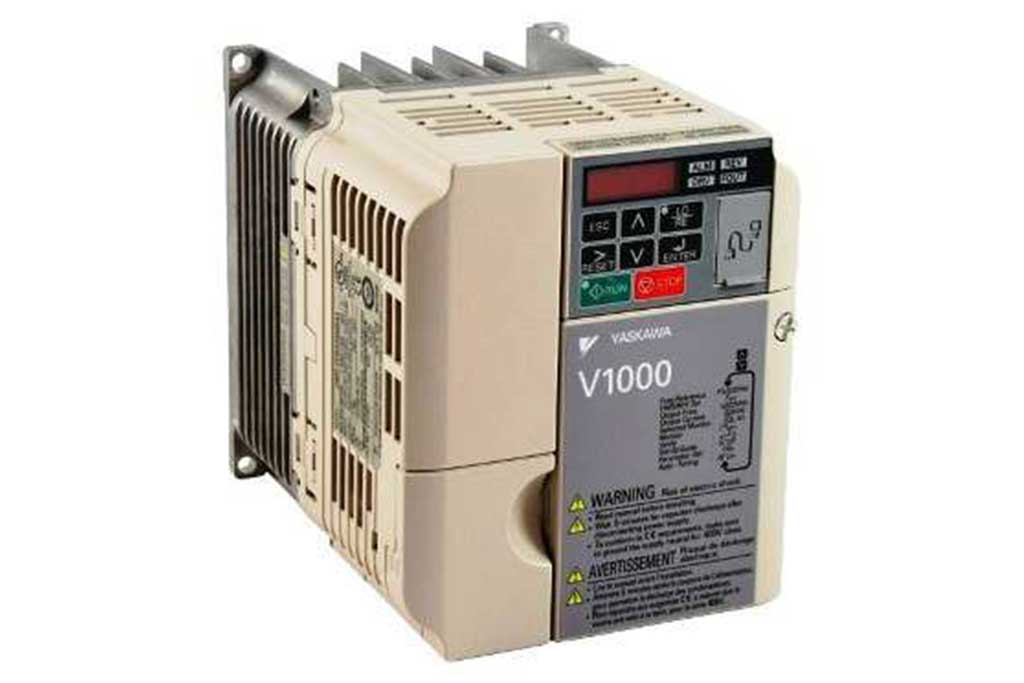

V 1000
V 1000
The V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa. The V1000 provides a world of power in the palm of your hand!
Range:1/8 – 25 HP View Catalogue
Product Specifications
| Model No. | V1000 |
| Brand | Yaskawa |
| Input Voltage | 1-phase, 200-240 Vac or 3-phase, 380-480 Vac |
| Input Current | 2.7A – 12A |
| Output Voltage | 0-240 Vac |
| Output Current | 1.2A – 6.0A |
| Output Power | 0.4kW – 3.7kW |
| Efficiency | Up to 98% |
| Enclosure Type | IP00/Open-Chassis, IP20/NEMA Type 1, IP20/Finless, NEMA 4X/IP66 |
| Dimensions | 150 x 110 x 70 mm (W x H x D) |
| Weight | 0.6 – 1.5 kg |
| Temperature Range | -10 to 50 degrees Celsius |
| Humidity Range | 5 to 95% non-condensing |
| Protection Class | IP20 |
| Warranty | 12 Months from Invoicing |
